Nimmt mal jemand den Berg da weck
![RM2EC80D7A598 0]() |

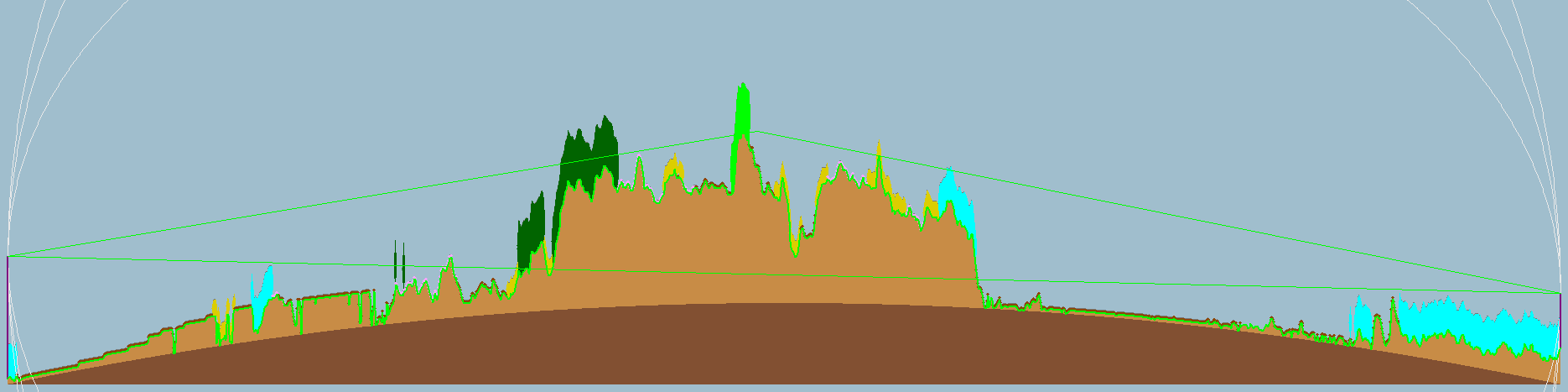

| Radio link Strecke Sandstedt>>>>>Bremen |
|---|
19NL001 (1)
| Latitude |
53.359390 |
° |
| Longitude |
8.520185 |
° |
| Ground elevation |
1.7 |
m |
| Antenna height |
36.0 |
m |
| Azimuth |
144.87 TN | 142.67 MG |
° |
| Tilt |
-0.20 |
° |
|
(2) 13DW100
| Latitude |
53.062596 |
° |
| Longitude |
8.867069 |
° |
| Ground elevation |
10.9 |
m |
| Antenna height |
16.0 |
m |
| Azimuth |
325.15 TN | 322.83 MG |
° |
| Tilt |
-0.17 |
° |
|
Radio system
| TX power |
36.99 |
dBm |
| TX line loss |
3.00 |
dB |
| TX antenna gain |
8.00 |
dBi |
| RX antenna gain |
6.00 |
dBi |
| RX line loss |
0.50 |
dB |
| RX sensitivity |
-113.02 |
dBm |
|
Propagation
| Free space loss |
107.91 |
dB |
| Obstuction loss |
21.81 |
dB |
| Forest loss |
1.00 |
dB |
| Urban loss |
2.67 |
dB |
| Statistical loss |
5.77 |
dB |
| Total path loss |
139.16 |
dB |
|
Performance
| Distance |
40.283 |
km |
| Precision |
20.1 |
m |
| Frequency |
148.000 |
MHz |
| Equivalent Isotropically Radiated Power |
15.811 |
W |
| System gain |
160.51 |
dB |
| Required reliability |
70.000 |
% |
| Received Signal |
-91.67 |
dBm |
| Received Signal |
5.84 |
μV |
| Fade Margin |
21.35 |
dB |
|
![RMstatic]() |

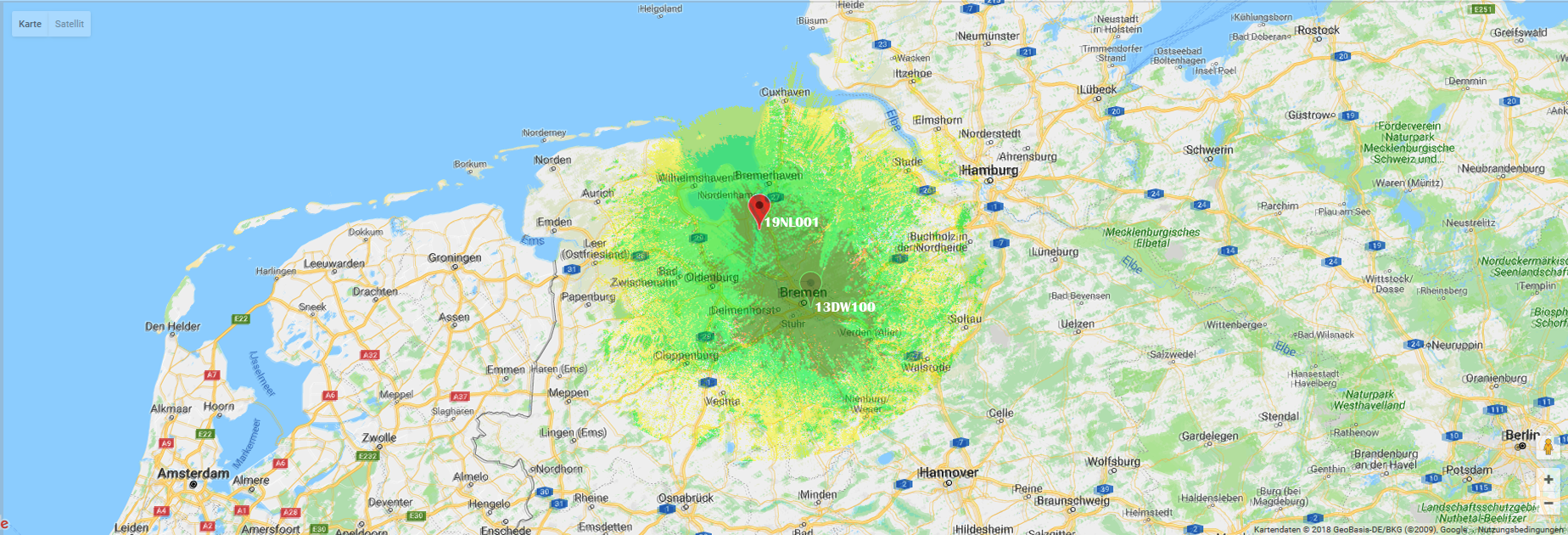

148-149 MHz Spektrum Richtung Bremen 50W Yagi 8 el 22 DBi
![Unbenannt 1]()

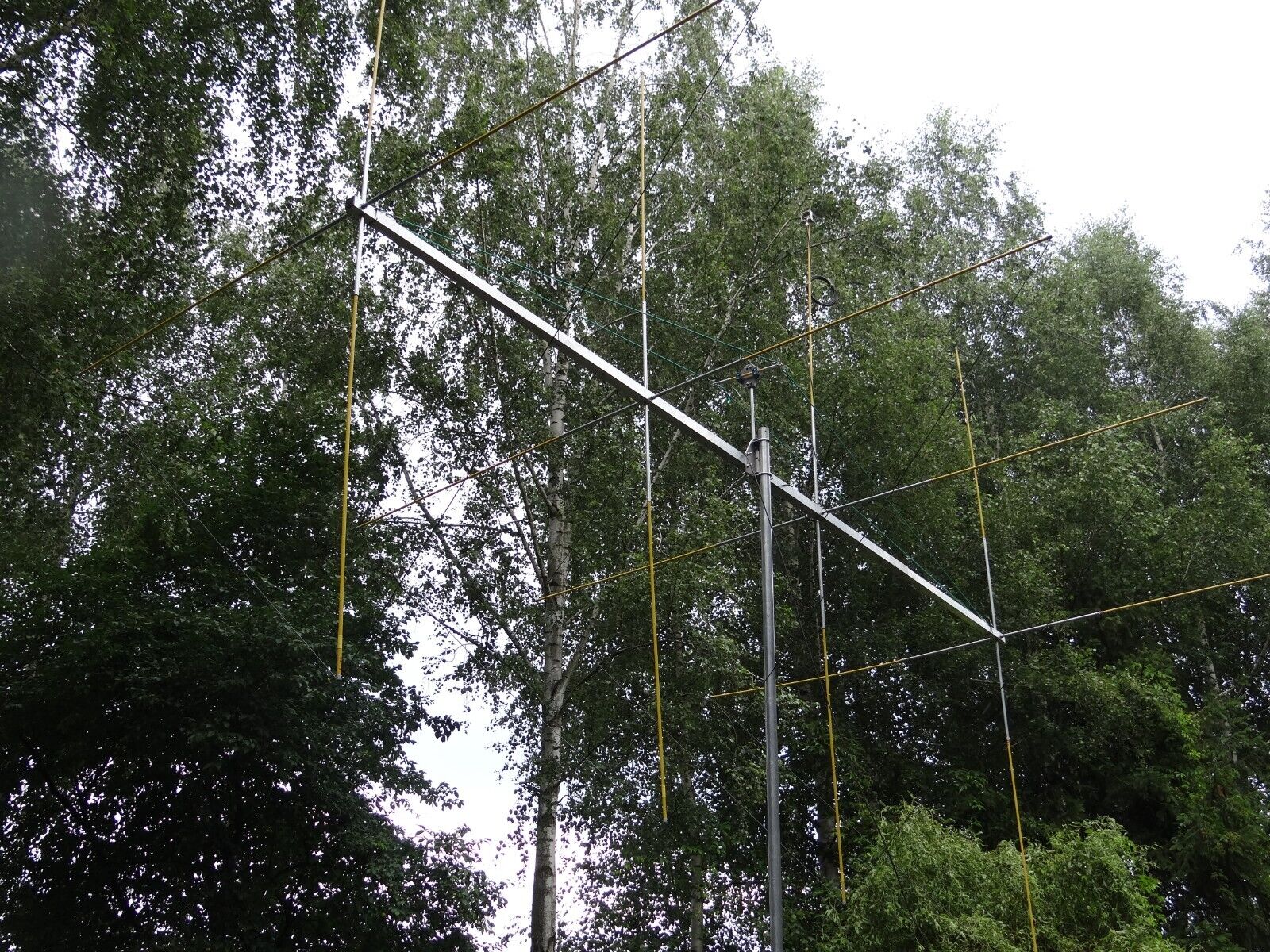

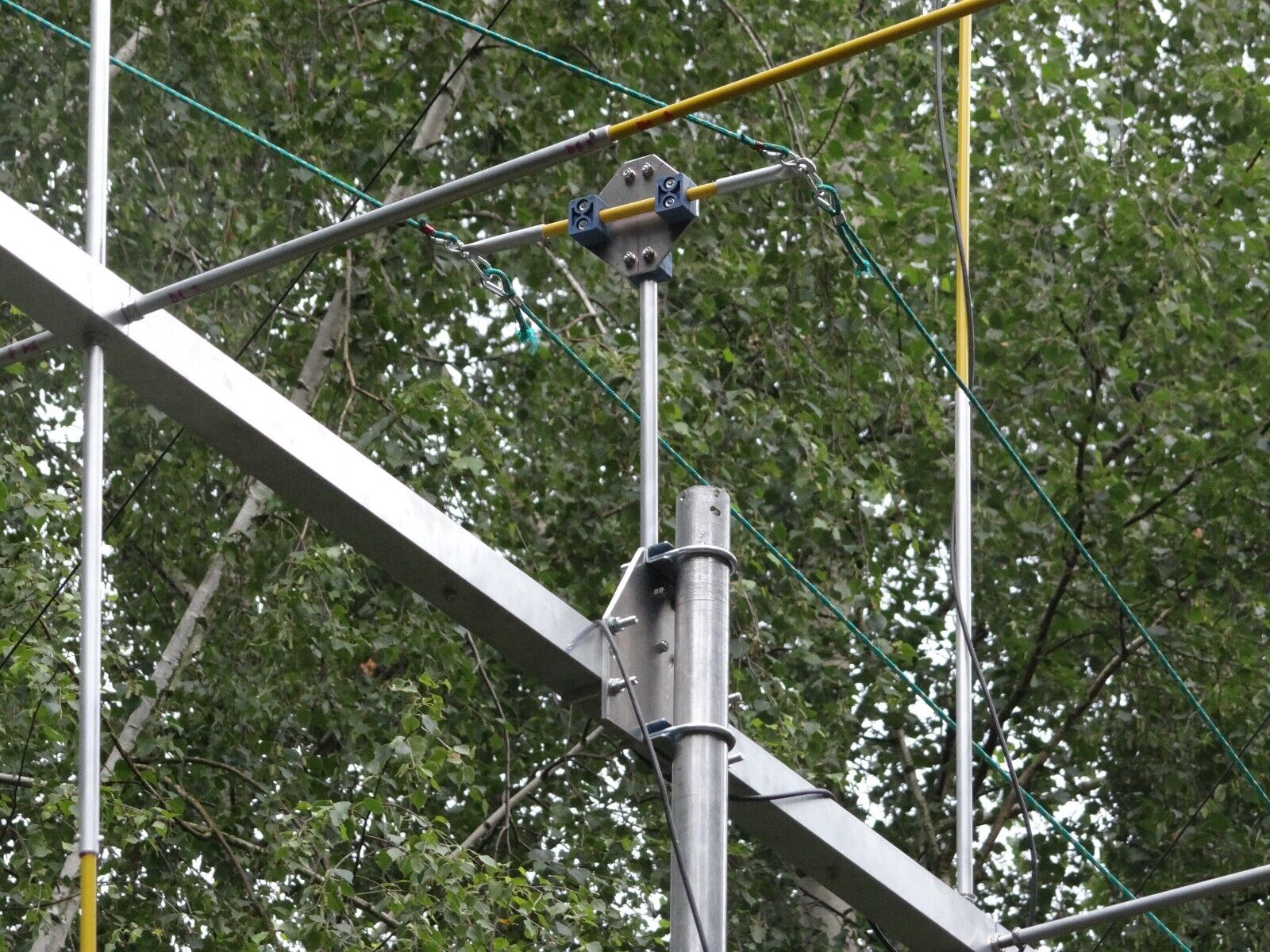

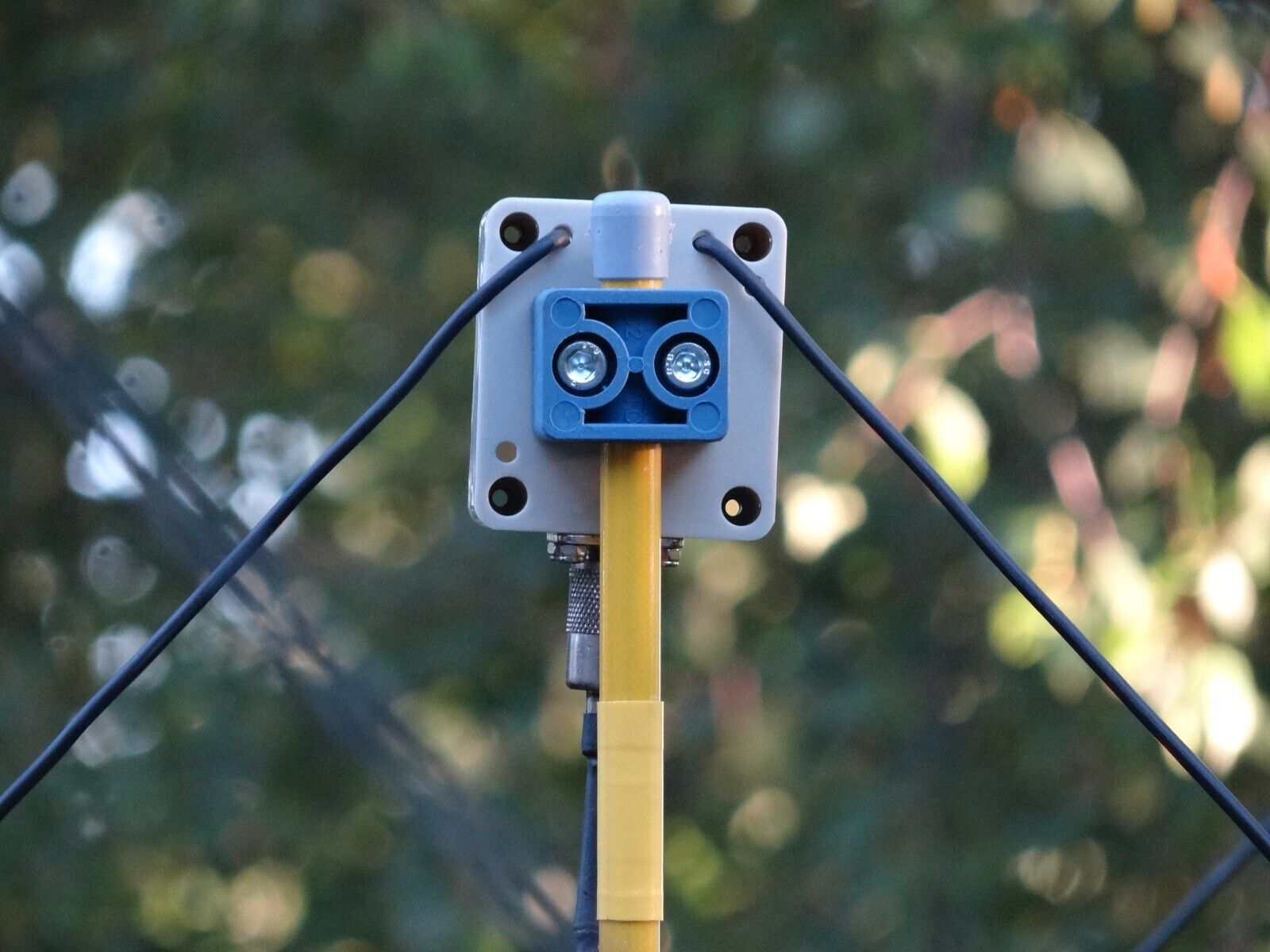

11-10m Cubical Quad
![s l1600]()
![1]()
![s l16002]()
![Screenshot 2024 05 09 at 13 26 52 The Ultimate Guide to 11 Meter CB Antennas]()
![Screenshot 2024 05 09 at 13 27 50 The Ultimate Guide to 11 Meter CB Antennas]()
